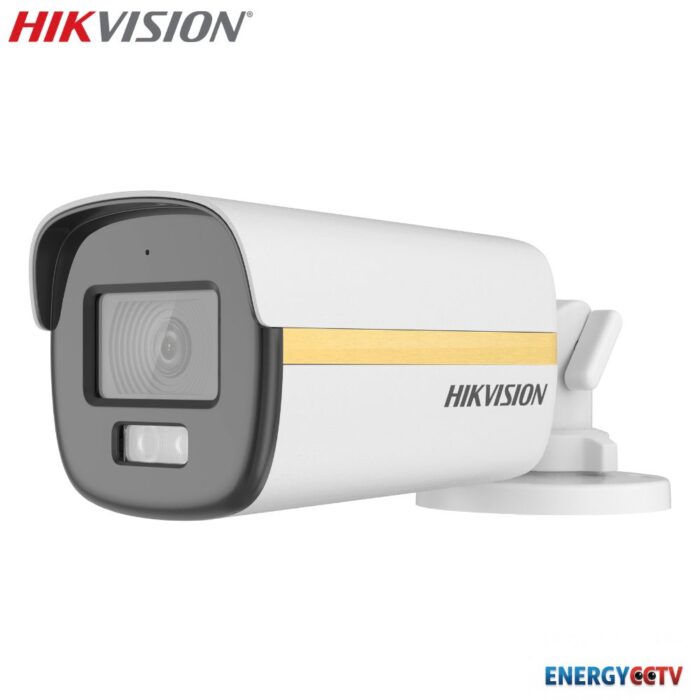

DS-2CE17H0T-IT3F 5 MP Fixed Bullet Camera

DescriptionDS-2CE17H0T-IT3F 5 MP Fixed Bullet Camera Specification:Camera Image Sensor5 MP CMOS Max. Resolution2560 (H) × 1944 (V) Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 sNTSC: 1/30 s to 1/50, 000 sDay & NightICR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360° Signal SystemPAL/NTSC Lens Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°8 mm, horizontal FOV: 41°, vertical FOV: 31°, diagonal FOV:52°12 mm, horizontal FOV: 26°, vertical FOV: 19°, diagonal FOV:32°Lens MountM12 Image Image Parameters SwitchSTD/HIGH-SAT Image SettingsBrightness, Sharpness, Mirror, Smart IR Frame Rate TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fpsAHD: 5M@20fps, 4M@30fps, 4M@25fpsCVI: 4M@30fps, 4M@25fpsCVBS: PAL/NTSCDay/Night ModeAuto/Color/BW (Black and White) Wide Dynamic Range (WDR)Digital WDR Image EnhancementDWDR/BLC/HLC/Global Noise ReductionYes White BalanceAuto/Manual AGCSupport Interface Video OutputTVI/AHD/CVI/CVBS General Material Front Cover: MetalMain Body: PlasticDimension78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″) WeightApprox. 330 g (0.73 lb.) Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) CommunicationHIKVISION-C LanguageEnglish Power Supply12 VDC ± 25% Consumption Max. 4.3 W
